Design Parameters

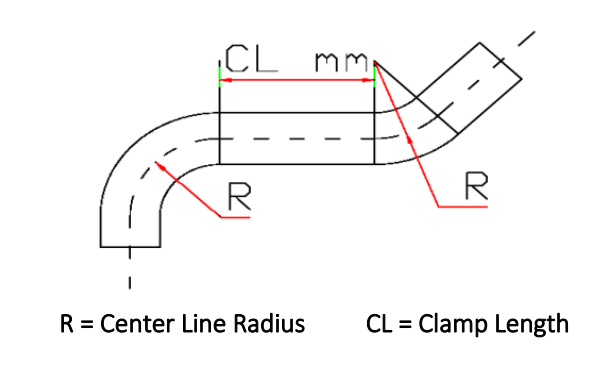

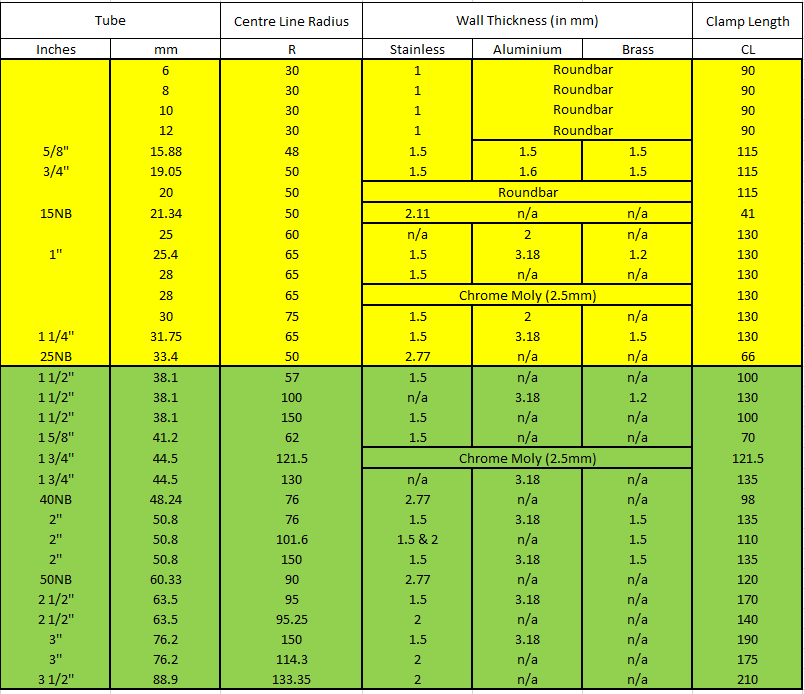

The purpose of this document is to assist clients with the design of their products, by providing parameters within which a product / part needs to fit, in order for us to bend it. Components that contain more than one bend per unit, require a minimum straight section between bends, in order to allow for the clamping of the tube, during the bending process. Refer to the clamp length column in the table.
We are able to bend any angle, up to and including 180°. This includes in 0.5° increments and in 0.1° increments. We also have the ability to roll tube, ranging from Ø15.88 to Ø88.9.
