Design Parameters:

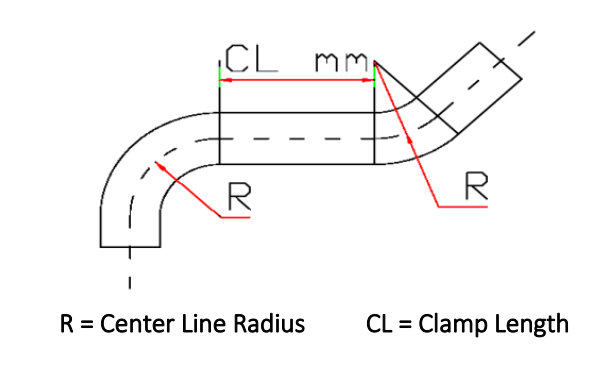

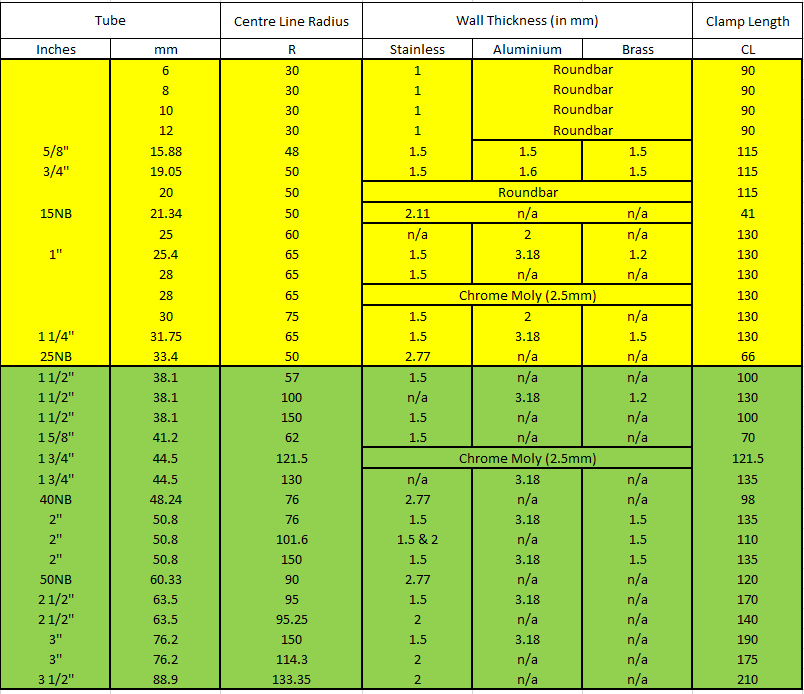

The purpose of this document is to assist clients with the design of their products, by providing parameters within which a product / part needs to fit, in order for us to bend it. Components that contain more than one bend per unit, require a minimum straight section between bends, in order to allow for the clamping of the tube, during the bending process. Refer to the clamp length column in the table.
